How to Design Data-Heavy Slides That Don’t Overwhelm Audiences

A data-heavy slide should make one decision-relevant takeaway easy to see-not attempt to display every fact available. Keep the evidence needed to support that takeaway, choose a visual form that makes the comparison easy to judge, make context and caveats visible when they could change the interpretation, and move audit detail to an appendix, handout, or companion document.

Clarity is not the same as omission. The aim is to give an audience an understandable route through the evidence: conclusion first, supporting proof next, and deeper detail when they need it.

Start with the decision, not the dataset

Before choosing a chart, write down the decision the slide must support. Are viewers deciding whether to fund a program, change a campaign, investigate a risk, or accept a recommendation? That decision determines what belongs on the slide.

Then write a single takeaway in plain language. It should be a claim the visual can substantiate, not merely a description of the data.

Descriptive title

Customer retention by cohort

Conclusion-led title

Retention improved for newer cohorts, but the enterprise-account change is uncertain

The second title tells the audience where to look and what to test. When statistics carry uncertainty, make that uncertainty clear in the visualization title rather than leaving viewers to discover it in a footnote. Guidance on communicating uncertainty also recommends explaining changes in definitions, collection, editing, imputation, or other factors that affect interpretation, and publishing quantitative uncertainty measures when available.

A practical way to edit a dense slide is to sort material into three layers:

1
1. Essential evidence on the slide The takeaway, the comparison that supports it, and decision-changing context.
2
2. Supporting explanation A short annotation, benchmark, definition, or caveat that answers the likely follow-up question.
3
3. Reference detail elsewhere Full tables, secondary cuts, methodology, source notes, and audit-ready calculations.

Do not push essential context out of view. Include the source, period, units, denominator, definition, comparison baseline, sample size, or uncertainty when leaving it out could lead to a different conclusion.

Choose the chart for the question

A chart is not a decoration for a table. It is a way of making a particular analytical task easier. Ask what the audience must judge.

For close comparisons, bars and dots are often better choices than pies because they put values on a common scale. Research on graphical perception identifies dot charts and bar charts as alternatives when accurate comparison is the priority. Likewise, separate line series can be a useful alternative when a stacked area chart makes individual series difficult to compare.

Use a pie chart only when all of the following are true:

1
1. there are five or fewer categories;
2
2. the categories add up to a meaningful whole; and
3
3. one category is clearly dominant.

If several slices are similar in size, use a bar chart instead. Do not use a pie to show small differences. Pie charts - Government Analysis Function also cautions against removing categories from the whole merely to make the chart simpler.

The point is not to ban chart types. It is to avoid asking viewers to perform a harder visual judgment than the decision requires.

Design a reading path through the evidence

Once the chart is chosen, decide what viewers should notice first, compare second, and consult only if needed.

A useful hierarchy usually has four parts:

1
1. A takeaway title that states the message.
2
2. A focal pattern-the bar, line, point, or range that matters most.
3
3. A comparison frame-a baseline, target, prior period, or peer group.
4
4. A short explanation of why the pattern matters.

For example, mute benchmark lines in gray, emphasize the segment that changed, label it at the endpoint, and add one concise callout that connects the result to a decision.

Gridlines can help viewers read a chart, but overly dense gridlines can impede reading. There is no universal spacing rule because the appropriate interval depends on the scale. Use only enough structure to support estimation.

Where space allows, label lines, bars, or points directly rather than forcing viewers to shuttle between a legend and the data. Direct labels can also make interpretation more resilient in grayscale and for viewers who cannot reliably distinguish the chosen colors. They are not a cure for crowding, however: if labels overlap, reduce the number of visible series or move secondary series to a separate view.

Preserve caveats without turning the slide into a footnote

A slide becomes misleading when its clean visual surface hides the conditions that determine whether the result holds.

Keep a caveat on the main slide when it could reverse, qualify, or materially limit the recommendation. That might include:

1
1. uncertainty around an estimate;
2
2. a small or changing sample;
3
3. a revised definition or collection method;
4
4. an incomplete period;
5
5. a denominator that differs across groups; or
6
6. a benchmark that is not directly comparable.

Where applicable, show uncertainty visually-for example, with upper and lower confidence-interval bounds around estimates or a range over time-rather than reducing it to vague language. If the caveat is important but not central to the first read, place it near the chart in concise plain language and provide fuller methodology in supporting material.

A source line can be compact, but it should remain readable. Tiny provenance text is not meaningful transparency.

Build accessibility into the slide, not after it

Accessible design also improves ordinary viewing conditions: a projected screen, a small laptop display, a rushed executive review, or a grayscale printout.

Use these checks before sharing a data-heavy slide:

1
1. Text size: Use a sans-serif font at a size that remains readable at the intended viewing distance. For projected presentations, test the slide from the back of the room.
2
2. Text contrast: Normal-size text needs a contrast ratio of at least 4.5:1; large text needs 3:1. Accessible PowerPoint guidance defines large text as 18pt or larger, or 14pt or larger when bold.
3
3. Chart-mark contrast: Meaningful graphical objects-such as chart lines, bars, and points-need at least 3:1 contrast against adjacent colors. WCAG guidance on non-text contrast
4
4. More than color: Do not use color as the only distinction. Add direct labels, patterns, markers, line styles, or values where needed.
5
5. Slide titles: Give every slide a unique, descriptive title so screen-reader users can navigate the deck.
6
6. Alternative text: Add accurate alternative text for charts and other meaningful visual content. Do not assume generated descriptions are accurate.
7
7. Reading order: Check that assistive-technology reading order follows the intended logic, especially after manually arranging elements.

If you use PowerPoint, its Accessibility Checker can identify issues and suggest resolutions, but it is not a complete review: it does not catch every contrast problem, including some non-text content.

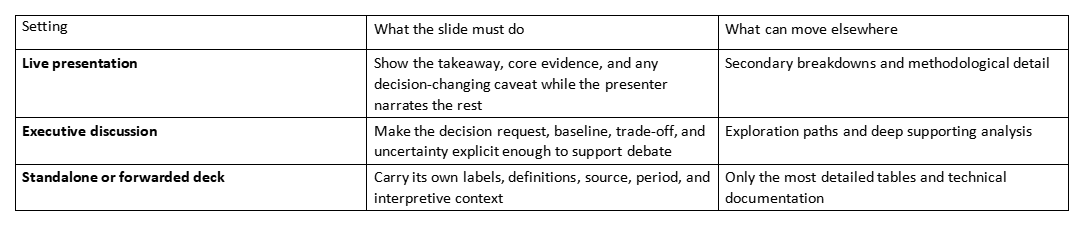

Adjust the evidence layer to the delivery setting

The same analysis may need different slide treatments depending on how people will encounter it.

Narration can supply context, but it cannot justify hiding a caveat that would change the recommendation. A standalone slide needs more visible context because it may be forwarded, printed, or read without the presenter.

Before finalizing, show the slide to someone representative of the audience. Give them a few seconds, then ask:

1
1. What is the takeaway?
2
2. What evidence supports it?
3
3. What caveat or condition matters most?
4
4. What decision should follow?

If they cannot answer, the slide is not yet doing its job.

Choose one overloaded slide this week and redesign it around those four questions. Do not strip away the truth to make it cleaner; organize the evidence so the truth can be understood in sequence.
