How to Use Grids and Alignment to Create Professional Layout Structure

Use a grid to give text, images, and controls shared edges, consistent spacing, and clear zones. Choose the grid based on the content and final format, then set margins, columns, gutters, and alignment rules before using span, scale, and whitespace to establish hierarchy.

A grid is not a decorative overlay or a rule that makes every element the same size. It is a placement system: a way to organize visual elements so readers can quickly see what belongs together, what matters first, and where to look next.

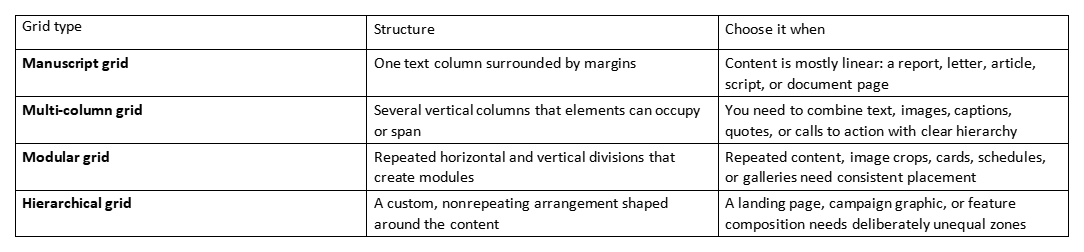

Choose the simplest grid that fits the content

Start with the information you need to organize-not the number of columns you think looks professional. Different grid types solve different layout problems.

A manuscript grid is simply one text column with margins around it. It is a strong starting point for long-form reading because the page has one clear path.

Use a multi-column grid when the composition needs more than one reading path or content zone. A headline may span several columns, while supporting text occupies fewer; an image can take more space than a caption without losing its relationship to the copy.

A modular grid adds horizontal divisions to the vertical columns. The resulting modules help govern where text and images sit, and how images are cropped. It is useful when a layout has repeated units, but it takes more care than a simple column system.

A hierarchical grid is less regular. It uses a custom arrangement for a particular composition rather than repeated columns or modules. Use it when the content itself calls for an uneven structure-not simply because asymmetry seems more interesting.

Establish the grid before you arrange the content

Once you have chosen a starting structure, define the rules that will repeat across the layout:

1
1. Set the outer margins. These establish the breathing room between the canvas edge and the content.
2
2. Add columns or modules only where they help organize distinct content groups.
3
3. Set gutters. Gutters are the spaces between columns or modules. They separate neighboring areas without making them feel unrelated.
4
4. Choose alignment anchors. Decide which left, right, center, top, or baseline edges will be shared.
5
5. Assign spans intentionally. Let the most important element occupy the space it needs; do not force every element into equal areas.

There is no universal margin, gutter, or column measurement. Choose these proportions based on the canvas size, the amount of text, image needs, readability, and the number of groups the audience needs to distinguish.

Use alignment to make relationships visible

Alignment is often more important than symmetry. A layout can be asymmetrical and still feel controlled when its elements share meaningful edges.

For example, imagine a social graphic with a headline, photograph, caption, and call to action:

1
1. Before: each item begins at a slightly different left edge. The gaps are coincidentally similar, so the call to action appears to carry the same weight as the headline.
2
2. After: the headline, caption, and call to action share a left edge; the image aligns to the same grid; the headline spans more width; and additional empty space separates the primary message from the secondary details.

The second version is easier to scan because the alignment lines show connection, while spacing shows priority.

Whitespace is part of this structure. Give important information enough room rather than crowding it with nonessential details. In interface layouts, related items can be grouped with negative space, while controls and content should remain distinct. The same principle applies to slides, posters, documents, and social graphics. Layout guidance from Apple

Build hierarchy with span and space, not random movement

A grid provides options; it does not decide what is important. You still need to build a clearer visual hierarchy.

Use these decisions to create hierarchy while preserving structure:

1
1. Let the primary headline span more columns or occupy a larger zone.
2
2. Keep supporting copy narrower or visually quieter.
3
3. Give a key image room to lead, rather than surrounding it with equally strong elements.
4
4. Use larger spacing between major groups than within a group.
5
5. Align labels, captions, buttons, or metadata consistently so they read as supporting information.

This avoids a common mistake: making every block equally prominent. Equal-size cards, equal gaps, and equally bold text can flatten the page. The grid should create a stable framework that lets important content take more space when it needs to.

Create vertical rhythm for text-heavy layouts

Horizontal alignment organizes a page from side to side. Vertical rhythm organizes it from top to bottom.

A baseline grid uses horizontal guidelines to create a shared rhythm for layout elements. It is particularly helpful for text-heavy, multi-section, or print-like work: reports, editorial pages, documents, and presentation slides with substantial copy.

A practical setup method is:

1
1. Choose the body-text size and line spacing.
2
2. Use that line-space increment as the baseline interval.
3
3. Position body text on the baseline.
4
4. Make paragraph gaps, heading spacing, and image offsets intentional multiples of that rhythm where appropriate.

You do not need to force every visual element onto every baseline. A large image, a display headline, or a fluid responsive component may need flexibility. The goal is order, not mechanical uniformity.

Use a baseline grid when the reader will move through substantial text. Skip the extra complexity when a simple visual composition has little text and the baseline does not materially improve the result.

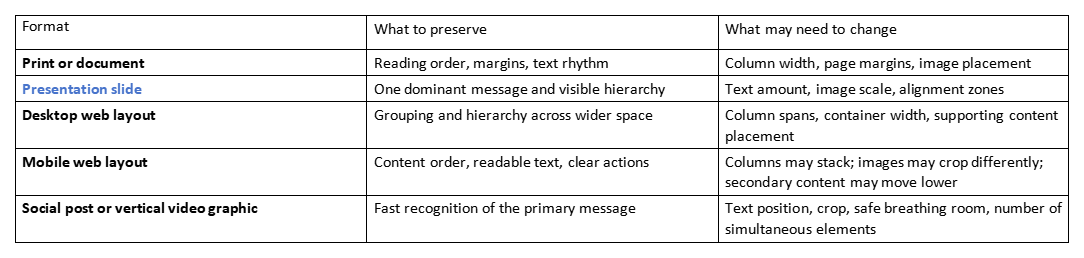

Recompose for the format instead of shrinking the layout

The underlying principles stay consistent across print, slides, social posts, and screens:

1
1. preserve clear grouping;
2
2. keep the primary message easy to find;
3
3. maintain readable text;
4
4. use shared alignment edges;
5
5. leave intentional whitespace.

The grid configuration, however, should change with the canvas.

A desktop row of several content blocks may need to become a vertical sequence on a narrower screen. Do not merely scale down the desktop composition. Reconsider which item comes first, which details can move later, and whether the image crop still supports the message.

For web layouts, responsive grids use columns, gutters, and margins whose configuration changes with screen width. If you work with markup, test reflow rather than assuming a compact layout is usable. At 400% zoom, most vertically scrolling content should reflow to an equivalent width of 320 CSS pixels without losing information or functionality and without requiring two-dimensional scrolling; layouts whose two-dimensional form is essential are an exception. W3C guidance on reflow

Also check that the layout still works when users increase text spacing. Content and functionality should remain available when line height is set to 1.5 times font size, paragraph spacing to 2 times font size, letter spacing to 0.12 times font size, and word spacing to 0.16 times font size. Those are user overrides to support, not settings every design must use. W3C guidance on text spacing

Break the grid only when the break communicates something

An off-grid element can create emphasis-a hero image that extends beyond its column, an urgent message, or a deliberate transition between sections. But the contrast works only when the surrounding layout clearly follows a system. Otherwise, the break is likely to look accidental.

Before moving an element off-grid, ask:

1
1. What does this exception make more noticeable?
2
2. Would the message become weaker if the element stayed within the grid?
3
3. Is the rest of the layout structured enough for the exception to read as intentional?
4
4. Does the break preserve readability and clear relationships?

If the answer is unclear, align it.

Pre-publish layout check

Before export or publication, review the design at its intended viewing size:

1
1. Do related elements share alignment edges or a clear common zone?
2
2. Are margins, gutters, and repeated gaps consistent?
3
3. Does the largest or widest area belong to the most important message?
4
4. Is whitespace separating major groups while keeping related items connected?
5
5. Can readers identify the headline, supporting information, and next action quickly?
6
6. Has the layout been recomposed-not just reduced-for each required format?
7
7. For web content, does it remain usable when zoomed and when text spacing increases?
8
8. Does every off-grid element have a clear purpose?

Choose one existing slide, post, document page, or video graphic and rebuild it with a defined grid, shared alignment edges, and intentional whitespace. If you want a place to put that plan into practice, open the asset in CapCut and refine the composition using the grid decisions you have already made.
