A strong 30-second assembly video shows the finished result first, focuses on essential actions, and uses close-ups, concise captions, and purposeful cuts to make each step easy to follow.
Have you watched a setup video that moves so quickly you cannot tell which screw goes where-or so slowly that you leave before anything happens? A carefully planned shot sequence can make even a multipart product feel simple in half a minute. The following workflow turns assembly footage into a clear, polished video that customers can follow and social audiences will keep watching.
Define One Achievable Outcome
A 30-second video cannot replace a complete instruction manual. Its purpose is to help the viewer achieve one specific result, such as attaching a stand, installing a filter, unfolding a portable product, connecting a cable, or completing an initial setup.
This narrow focus matters because demonstrations work best when they concentrate on the features or actions most relevant to the audience. An effective product demonstration communicates value visually and guides the viewer toward a practical next action instead of trying to explain everything at once.
Write the outcome as a plain sentence before filming: "By the end of this video, the viewer can attach the lamp base and turn on the lamp." If the sentence contains several outcomes joined by "and," the scope may already be too broad.
For example, a flat-pack side table might take 20 minutes to assemble. Instead of compressing the entire process into a confusing montage, create separate 30-second videos for identifying the parts, attaching the legs, installing the lower shelf, and checking stability. This approach produces a useful series rather than one overloaded tutorial.

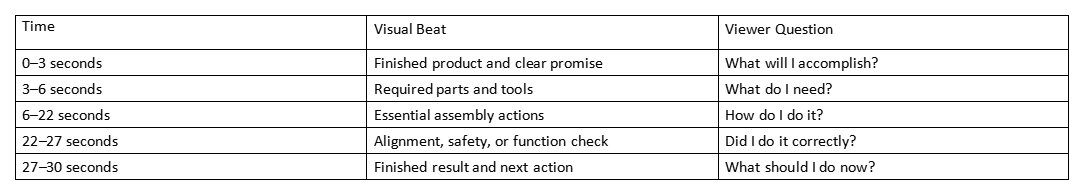

Build the Video Around Five Visual Beats
Treat the video as a sequence of visual beats rather than a shortened long-form tutorial. Each beat should answer the viewer's next question without requiring a lengthy explanation.
For a desk lamp, the opening might show the illuminated lamp with the caption "Set up in four steps." The next shot displays the base, pole, shade, and power adapter. The middle shows the pole twisting into the base, the shade locking into place, and the adapter connecting. The final seconds confirm that the parts sit flush before showing the lamp turned on.
This structure provides context, demonstration, and confirmation without wasting time on a long introduction.
Plan the Timing Before Recording
Do not film an entire assembly and expect to discover the 30-second sequence during editing. First, perform the process slowly and identify the moments that change the product's state.
Ask whether the viewer must see an action to reproduce it safely and correctly. Opening packaging, searching for a tool, repositioning the product, and repeating the same fastening motion usually do not require full screen time. Show the first turn of a screw clearly, then accelerate or cut away from the remaining turns.
Effective editing depends on pacing, logical flow, and consistent sound. A beginner-friendly workflow begins by outlining the hook, main beats, ending, and intended response before selecting clips. This preparation makes it easier to remove dead air, repeated motions, and pauses that weaken momentum, as reflected in practical editing recommendations.
If the planned sequence contains eight actions and each requires three seconds, the demonstration alone will take 24 seconds. That leaves only six seconds for the opening, parts overview, verification, and final result. Shorten the individual actions or divide the setup into multiple videos.
Film From the Viewer's Point of View
The viewer needs to see contact points, orientation, and movement. A polished wide shot is not useful if the hands cover the connector or the camera cannot show which side faces upward.
Use an Overhead View for Parts and Placement
An overhead camera works well for small products, electronics, accessories, kitchen tools, toys, and tabletop assembly. It allows viewers to compare the positions of parts without mentally reversing the demonstrator's movements.
A cell phone can serve as a practical document camera for showing physical objects and handwritten details. Teaching technology recommendations suggest stabilizing the device with a small tripod and grip to maintain a clear, consistent image. Although the recommended landscape orientation works well for presentations, vertical social videos require a different approach: record vertically when the final destination is a short-form platform.
For example, place every part of a faucet attachment on a clean surface in its installation order. Position the washer directly beside the opening where it belongs. This spatial arrangement begins teaching the process before the hands move.
Add Close-Ups at Decision Points
A decision point is any moment when the viewer could choose the wrong part, direction, slot, setting, or amount of force. These moments require the tightest framing.
Show the shape of a keyed connector before insertion. Show an arrow molded into a filter cartridge. Show the difference between the long and short screws. If two pieces must align with a click, keep the connection visible until the viewer sees or hears the confirmation.
Three-dimensional visualization can clarify assembly processes that are difficult to film, particularly when components overlap or internal parts become hidden. Specialized 3D assembly videos can reveal exploded views and concealed connections, but they require more production time than straightforward live-action footage. Use live footage for simple, visible actions and animation only when a camera cannot clearly show the mechanism.
Make Every Cut Preserve Continuity
Continuity means keeping the product, tools, hands, and parts in believable positions from one shot to the next. Poor continuity makes even a simple process feel unreliable.
Suppose one shot ends with a bracket in the left hand, but the next begins with it attached from the opposite direction. Although both shots may be clear individually, the cut creates doubt. Record each important action from beginning to end before changing the camera angle, and return the product to a consistent position between takes.
Use direct cuts for most assembly actions. Decorative spins, flashes, and elaborate transitions consume time and can conceal crucial hand movements. Cut after the viewer understands the action but before repetition becomes tedious.
When an action takes too long, show its beginning at normal speed, accelerate the repetitive middle, and return to normal speed for the final alignment or click. A 12-second tightening sequence might become a three-second segment: one second to place the tool, one second of accelerated tightening, and one second to show the secure connection.
Use Captions as Instructions
Many social videos are viewed without reliable audio, so the assembly must remain understandable through visuals and text alone. Captions should identify the action, direction, part, or verification point that matters at that moment.
"Install the bracket" is less useful than "Arrow faces up." Similarly, "Attach the leg" is less useful than "Use the two long screws." Specific language prevents errors while keeping the text concise.
Position captions away from hands and connection points. Keep each instruction on screen long enough to be read once at a normal pace. Consistent typography, color, and placement help viewers recognize instructional text quickly.
The rule of thirds can help balance the product and text, while consistent exposure and white balance keep parts recognizable between shots. For a vertical video, place the product slightly below center and reserve the upper third for short instructions. Avoid placing essential text near the bottom edge, where interface controls and descriptions may cover it.
Prioritize Clarity Over Cinematic Style
Strong lighting, stable framing, and visible detail matter more than dramatic camera movement. Assembly footage should distinguish dark screws from dark plastic, reveal small alignment marks, and prevent glare from concealing polished surfaces.
Use soft light from the front or side rather than placing a bright source directly behind the product. Lock the focus and exposure when possible so the image does not brighten and darken as hands enter the frame. Clean the work surface and remove spare parts that are not needed for the current step.
Audio is optional in a silent visual tutorial, but it can reinforce important actions. A click, snap, or power-on tone provides useful confirmation. If you use narration, keep background music well below the voice; approximately -20 dB is a practical starting point. Clear, consistent sound builds trust, while aggressive music or excessive processing competes with the instructions.
Edit in Stages
Organize clips before building the final timeline. Label footage by function, such as finished result, parts overview, first step, second step, detail shot, safety check, and final test. Remove blurry, obstructed, or incorrectly performed takes immediately.
Build the video in passes. Begin with the essential action sequence, add close-ups where the wide view is unclear, correct brightness and white balance, insert captions and arrows, balance the sound, and finish with the appropriate export settings.
Batching similar tasks reduces repeated switching between creative and technical decisions. An efficient staged editing workflow separates primary footage, supplementary shots, color, graphics, music, sound effects, and final review. For recurring products, saved text, audio, framing, and export presets can significantly shorten future edits.
Automated editing tools can remove pauses, generate captions, clean audio, reframe footage, and create alternate cuts. Treat these features as assistants rather than final decision-makers. Automated trimming may remove a brief pause that viewers need to recognize a component, while automatic reframing may crop out the hands or connection point.
Choose the Right Shooting Approach
A continuous one-take demonstration feels authentic and proves that the setup is genuinely simple. It also reduces continuity errors. However, it becomes difficult when the product contains tiny components, hidden connections, or actions that take longer than the video allows.
Multi-shot editing provides clearer close-ups, faster pacing, and greater control over mistakes. Its disadvantages are longer filming time and a greater risk of inconsistent hand or product positions.
Use one take when the setup has one to three highly visible actions, such as unfolding a stand or attaching a magnetic accessory. Use multiple shots when viewers must identify different fasteners, inspect alignment marks, or verify internal connections.
A hybrid approach is often the most effective: show the main assembly in one continuous overhead shot, then insert one or two close-ups at the precise moments when the viewer needs more detail.
End With Visible Proof
The final shot should confirm that the product is ready and correctly assembled. Turn on the appliance, place weight on the shelf, lock the folded mechanism, display the connected app screen, or show the accessory functioning in actual use.
For example, after installing a cell phone mount, do not end immediately after tightening the knob. Insert the cell phone, rotate it into the intended position, and lightly test its stability. This two-second proof answers the viewer's most important final question: "Did the setup work?"
A brief call to action can follow the proof, but it should match the viewer's next need. "Save for setup day," "Watch the next part for calibration," or "Scan the code for complete instructions" is more useful than a vague request to follow the account.
Export and Test the Final Video
A broadly reusable baseline is a 1080p MP4 file with H.264 compression. For short-form social distribution, create a 9:16 vertical video and confirm that captions, arrows, and important product details remain within the platform's safe viewing area.
Watch the export once with sound and once muted. Then watch it on a cell phone at normal brightness without pausing. If you cannot identify every part and action during this uninterrupted test, viewers probably cannot either.
Finally, ask someone unfamiliar with the product to describe the process after one viewing. This test is more revealing than asking whether the video "looks good." If the person reverses a part, misses a safety check, or cannot remember the final action, revise the relevant shot or caption.
Create a Repeatable 30-Second Format
Effective assembly videos are not simply fast; they are selective. Show the destination, reveal the necessary parts, demonstrate only the actions that affect the outcome, highlight likely mistakes, and finish with visible proof that the product works.
Once this rhythm becomes a reusable template, each new video becomes easier to plan, film, edit, and adapt. Keep the camera stable, make captions specific, and place the viewer's next question at the center of every cut.
